Flyte - Sky Platform Integration

We offer a Flyte Agent for executing Flyte tasks on PERIAN Sky Platform. To install the plugin, run the following command:

pip install flytekitplugins-perian-job

Note: If you want to use the latest features that has not been approved by Flyte maintainers yet, use the package flytekitplugins-perian-job-unofficial instead.

Getting Started

This plugin allows executing PythonFunctionTask or raw ContainerTask on PERIAN Sky Platform. For PythonFunctionTask, an ImageSpec needs to be built with the PERIAN agent plugin installed.

See the examples below for how to use it.

Flyte Integration Overview

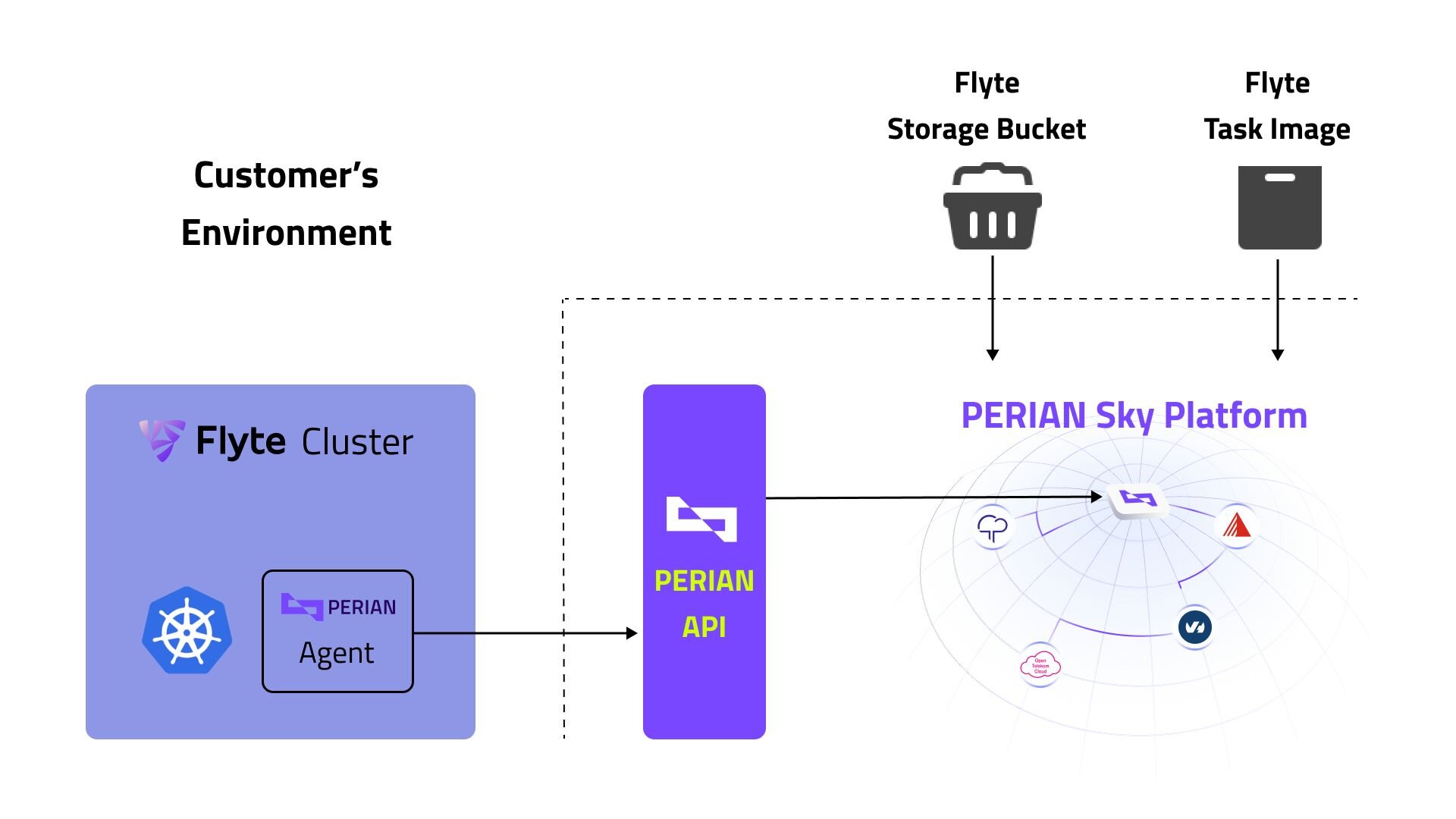

PERIAN Flyte Integration Concept

Parameters

The following parameters can be used to set the requirements for the PERIAN task. If any of the requirements are skipped, it is replaced with the cheapest option. At least one requirement value should be set.
  • cores: Number of CPU cores
  • memory: Amount of memory in GB
  • accelerators: Number of accelerators
  • accelerator_type: Type of accelerator (e.g. 'A100'). For a full list of supported accelerators, use the perian CLI list-accelerators command
  • country_code: Country code to run the job in (e.g. 'DE')

Credentials

The following secrets are required to be defined for the agent server:
  • PERIAN credentials:
    • perian_organization
    • perian_token
  • To access the Flyte storage bucket, you need to add either AWS or GCP credentials. These credentials are never logged by PERIAN and are only stored until then are used, then immediately deleted.
    • AWS credentials:
      • aws_access_key_id
      • aws_secret_access_key
    • GCP credentials:
      • google_application_credentials: This should be the full json credentials.
  • (Optional) Custom docker registry for pulling the Flyte image:
    • docker_registry_url
    • docker_registry_username
    • docker_registry_password
      (Hint: generate a Docker hub token) Tokens are more secure and can be generated in Docker Hub settings.

Example

Example using a PythonFunctionTask:

from flytekit import ImageSpec, task, workflow
from flytekitplugins.perian_job import PerianConfig

image_spec = ImageSpec(
    name="flyte-test",
    registry="my-registry",
    python_version="3.11",
    apt_packages=["wget", "curl", "git"],
    packages=[
        "flytekitplugins-perian-job",
    ],
)

@task(container_image=image_spec,
      task_config=PerianConfig(
        accelerators=1,
        accelerator_type="A100",
      ))
def perian_hello(name: str) -> str:
    return f"hello {name}!"

@workflow
def my_wf(name: str = "world") -> str:
    return perian_hello(name=name)

Example using ContainerTask:

from flytekit import ImageSpec, task, workflow
from flytekitplugins.perian_job import PerianContainerTask

perian_hello = PerianContainerTask(
    name="perian_hello",
    task_config=PerianConfig(
        accelerators=1,
        accelerator_type="A100"),
    image="alpine",
    environment={"MYKEY": "MYVALUE"},
    inputs=kwtypes(name=str),
    command=[
        "echo",
        "hello {{.inputs.name}}!",
    ]
)

@workflow
def my_wf(name: str = "world") -> str:
    return perian_hello(name=name)
